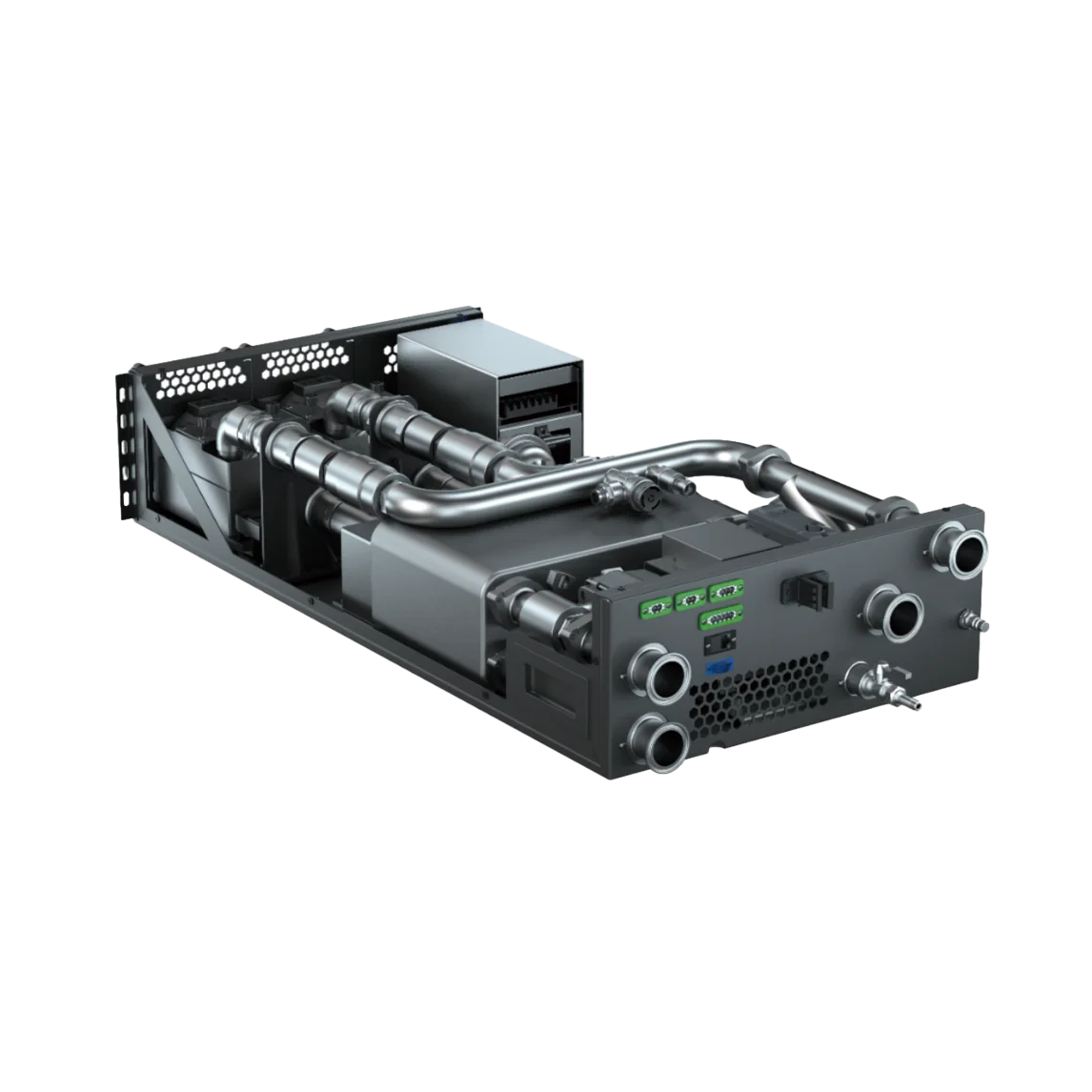

In-Rack CDU 150 kW

1+1 pump redundancy design allows a single pump to maintain the rated flow requirement.
Hot-swappable pump design with blind-mate connectors for both liquid and electrical interfaces. The control system automatically detects pump installation and removal status.
Critical pressure and temperature sensors feature 1+1 redundancy for enhanced system reliability.
Integrated anti-condensation control with internal and external leak detection capabilities.
Supports local and remote control, as well as multiple communication protocols.

Product Details

Specifications

Item	Parameter
Model	RCDU-150P-001
Dimensions	175 (4U) × 445 × 900 mm
Operating Environment	5–45°C / RH5–95%
Storage Environment	-20°C to 60°C / RH5–95%
Altitude	≤3000 m
Rated Heat Exchange Capacity	150 kW
Operation Description	Primary Side	Secondary Side
Cooling Medium	Water	PG25 / 25%
Flow Rate	128.3 L/min	115 L/min
Rated Output Pressure Difference	/	≥140 kPa
Rated Inlet Liquid Temperature	35°C	60°C
Rated Outlet Liquid Temperature	52°C	40°C
Filtration Accuracy	100 μm	100 μm

Item	Parameter
Operation Description	Primary Side	Secondary Side
Maximum Working Pressure	10 bar	5 bar
Pressure Sensor	One inlet and one outlet	Two inlets and two outlets, one in front of the pump, one in front of the filter
Human-Machine Interface (HMI)	3.5″ Color Touch Screen
Communication Interface	RS485 RTU Modbus, RJ45
Power Supply	DC 48V
Maximum Power Consumption	2.4 kW
External Pipeline Interface	1.5″ Sanitary Chuck
Weight	70 kg
MTBF	≥40,000 h
Noise Level	<58 dBA
