Specifications
| 12038L12B | 12038M12B | 12038H12B | |||
| Fan | Dimensions | 120*120*38mm | 120*120*38mm | 120*120*38mm | |
| Principalpart | PBT | PBT | PBT | ||
| Voltage | 12V | 12V | 12V | ||
| Current | 0.45Amp | 1.90Amp | 4.50Amp | ||
| Power | 5.40W | 22.8W | 54.0W | ||
| Speed | 2000RPM | 4000RPM | 6000RPM | ||
| Air Flow | 86.17CFM | 144.94CFM | 206.33CFM | ||
| Air Pressure | 8.48mm/H2O | 27.51mm/H2O | 58.30mm/H2O | ||
| Noise | 49.0dB | 61.5dB | 68.8dB | ||

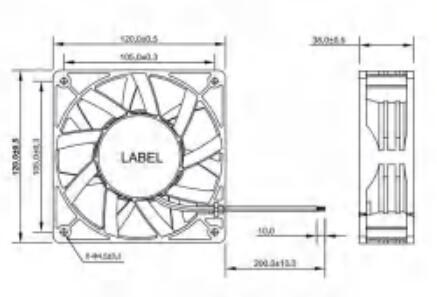

Dimensions drawing
