Solutions
Apaltek Shenzhen Co.,Ltd.was founded in 2010, With a high-quality provider of the thermal management solutions which has integrated in R&D, manufacturing, selling and servicing, and leading position in semicoductor of CPU GPU
Application products
Workstation cooling liquid cooling system

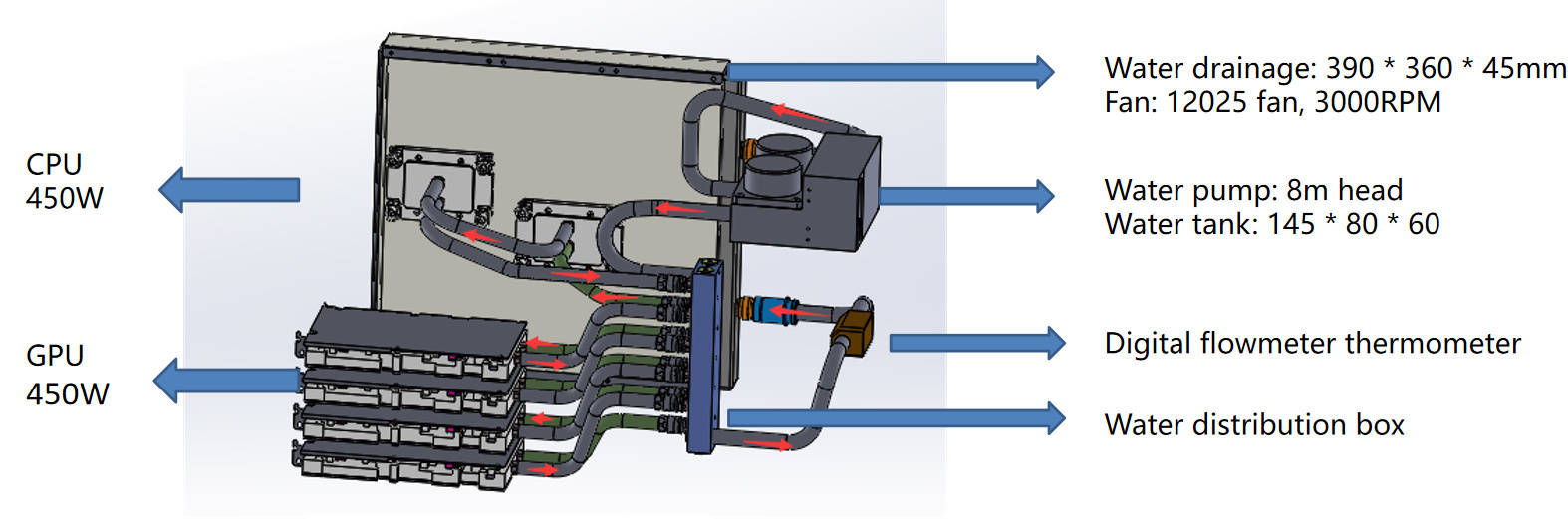

TECHNICAL REQUIREMENT
- .Liquid cooled workstation,
- Coolant: PG25, liquid temperature=40 ° C
- Two CPUs: 450W * 2, four GPUs: 450W * 4, (total approximately 2700W).
- Water discharge specification: 390 * 360 * 45mm
The red color arrows in the above picture that means the fluid flow direction
Cold plate with quick connectors solution
Supports RTX3090, 4090, or any specified GPU platform
- The cold plate is made of copper and done brazing process, And it makes certain no any risk leaking
- Fast connectors in CNC process and unplug without leaking
- Cold plate is nickel plated
- Application to 8 GPU boards/TDP:3600W

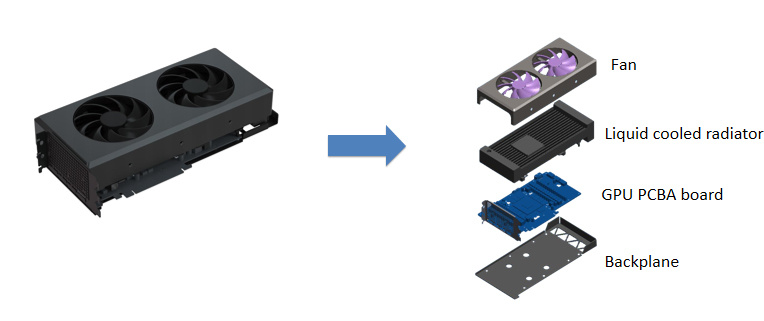

All-in-One Liquid cooled radiator module（Fit single card）
Compatible Socket & CPU:Customized according to requirements
Power dissipation:350W~450W
-
All-In-One module is easy applicable for server modular management
-
Tubeless means to say leaking risk and the evaporating quite less, And use it for long time
-
NLP (Non-Leaking Point) : Less manually assembly and stable brazing process make certain no leaking
-
Metal material means to say no evaporating and use it for long time
-
Liquid cooling solution suits to compact server project
-
Flow in parallel and keep equality temp
Application product
Open loop series
